Electric Shuttle Bus

Transit TR11

11-seat electric passenger transport, with open or enclosed body options. Plan the vehicle around your route, passenger load and charging schedule.

Explore customization services

Seats
11
Range
100 km 62 mi
Top speed
≤ 30 km/h ≤ 19 mph · adjustable
Motor
7.5 kW 72 V AC

Choose your configuration

Configuration

Ask for a loading plan, production timing and service parts in the written quote.

Transit TR11, Open body · 11 seats

Keep people moving.

Transit TR11 at a glance

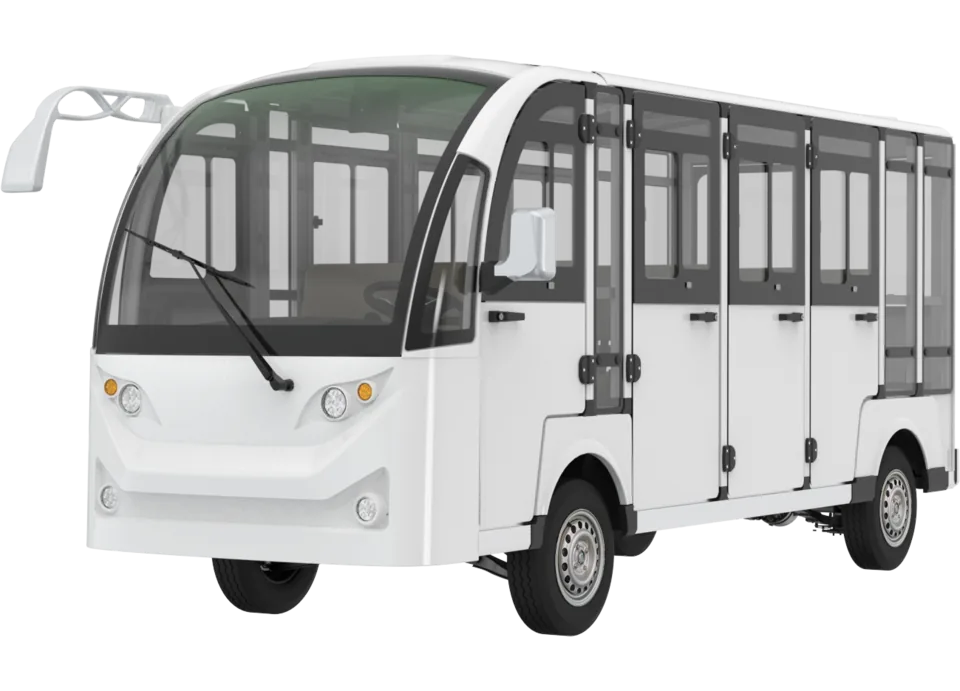

The Transit TR11 is a 11 seat electric shuttle bus from the Transit range for resort, campus, airport and event transfers.

Its published 2025 sheet lists a 100 km (62 mile) base range, a top speed of up to 30 km/h (19 mph), a 72 V system with a 7.5 kW motor and an 8-hour charge time. Power comes from deep-cycle, maintenance-free lead-acid batteries. Both an open-sided body and an enclosed body are published for this model.

The shuttle platform. MacPherson front suspension, leaf-sprung rear axle, vacuum-assisted dual-circuit brakes and automotive laminated glass. Every length is available open-sided or fully enclosed with doors.

Dealers and fleet buyers order it wholesale by container, with configuration, colour and branding confirmed in the written quotation.

  • Overall4650 x 1510 x 2120 mm183.1 x 59.4 x 83.5 in
  • SeriesTransitShuttles
  • Seating11configurable

2025 model year

Full specification

Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.

Open body · 11 seats

Transit TR11 — Open body · 11 seats specification
Overall L x W x H 4650 x 1510 x 2120 mm183.1 x 59.4 x 83.5 in
Wheelbase 2770 mm109.1 in
Seating capacity 11
Kerb weight 1200 kg2646 lb
Gross vehicle weight 2135 kg4707 lb
Track, front / rear 1300 / 1300 mm51.2 / 51.2 in
Ground clearance 140 mm5.5 in
Turning radius, outer ≤ 6.5 m≤ 21.3 ft
Luggage rack 240 x 1420 x 250 mm9.4 x 55.9 x 9.8 in
Range 100 km62 mi
Top speed ≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden ≤ 15%
System voltage 72 V
Motor 72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller 72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time 8 hours
Chassis High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension Solid rear axle on leaf springs with hydraulic dampers
Brakes Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels 165/70R13 tubeless radial tyres on steel rims
Body High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars Custom aluminium front and rear pillars — high strength, corrosion-free
Glazing Automotive laminated safety glass
Floor Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment
  • Reversing camera
  • Multimedia display
  • Two-point retractable seat belts
  • Safety chains
  • Stainless steel luggage rack
  • Audio system
  • Fire extinguisher
  • Brake booster
  • Power steering
  • USB socket
  • Centre rear-view mirror
Electric vehicle chassis on an assembly line

Plan beyond delivery

A vehicle is part of a bigger plan.

Start with the configuration. Then plan the order, the charging setup and the service parts that keep your fleet supported.

  1. 01

    Define your specification

    Confirm seating, body options and requirements for your market.

  2. 02

    Plan the order

    Share your quantity and destination for loading and pricing.

  3. 03

    Match the parts

    Build a service package around your model and revision.

Build my fleet quote ↗

Questions about the Transit TR11

How many seats does the model Transit TR11 have?

The Transit TR11 seats 11.

How fast does the model Transit TR11 go?

Up to 30 km/h (19 mph) on the published sheet, and the top speed can be limited in the controller for your site.

What is the range of the model Transit TR11?

The published base range is 100 km (62 miles) per charge, with an 8-hour charge time. Real range depends on load, gradients and driving style.

How much does the model Transit TR11 cost?

The Transit TR11 is sold wholesale by quotation. The price depends on the configuration, battery, options, quantity and destination; send your order details for a written quote.
