Electric Shuttle Bus

Transit TR14

14-seat electric passenger transport, with open or enclosed body options. Plan the vehicle around your route, passenger load and charging schedule.

Explore customization services

Seats
14
Range
90 km 56 mi
Top speed
≤ 30 km/h ≤ 19 mph · adjustable
Motor
7.5 kW 72 V AC

Choose your configuration

Configuration

Ask for a loading plan, production timing and service parts in the written quote.

Transit TR14, Open body · 14 seats

Keep people moving.

Transit TR14 at a glance

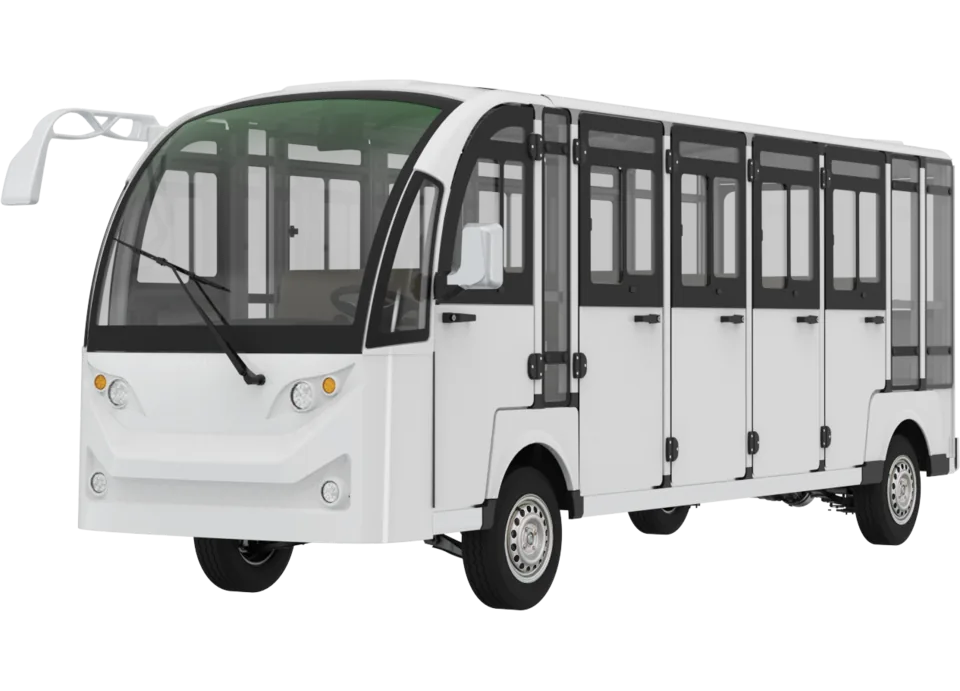

The Transit TR14 is a 14 seat electric shuttle bus from the Transit range for resort, campus, airport and event transfers.

Its published 2025 sheet lists a 90 km (56 mile) base range, a top speed of up to 30 km/h (19 mph), a 72 V system with a 7.5 kW motor and an 8-hour charge time. Power comes from deep-cycle, maintenance-free lead-acid batteries. Both an open-sided body and an enclosed body are published for this model.

The shuttle platform. MacPherson front suspension, leaf-sprung rear axle, vacuum-assisted dual-circuit brakes and automotive laminated glass. Every length is available open-sided or fully enclosed with doors.

Dealers and fleet buyers order it wholesale by container, with configuration, colour and branding confirmed in the written quotation.

  • Overall5400 x 1510 x 2120 mm212.6 x 59.4 x 83.5 in
  • SeriesTransitShuttles
  • Seating14configurable

2025 model year

Full specification

Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.

Open body · 14 seats

Transit TR14 — Open body · 14 seats specification
Overall L x W x H 5400 x 1510 x 2120 mm212.6 x 59.4 x 83.5 in
Wheelbase 3520 mm138.6 in
Seating capacity 14
Kerb weight 1380 kg3042 lb
Gross vehicle weight 2570 kg5666 lb
Track, front / rear 1300 / 1300 mm51.2 / 51.2 in
Ground clearance 140 mm5.5 in
Turning radius, outer ≤ 7 m≤ 23 ft
Luggage rack 240 x 1420 x 250 mm9.4 x 55.9 x 9.8 in
Range 90 km56 mi
Top speed ≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden ≤ 15%
System voltage 72 V
Motor 72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller 72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time 8 hours
Chassis High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension Solid rear axle on leaf springs with hydraulic dampers
Brakes Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels 165/70R13 tubeless radial tyres on steel rims
Body High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars Custom aluminium front and rear pillars — high strength, corrosion-free
Glazing Automotive laminated safety glass
Floor Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment
  • Reversing camera
  • Multimedia display
  • Two-point retractable seat belts
  • Safety chains
  • Stainless steel luggage rack
  • Audio system
  • Fire extinguisher
  • Brake booster
  • Power steering
  • USB socket
  • Centre rear-view mirror
Electric vehicle chassis on an assembly line

Plan beyond delivery

A vehicle is part of a bigger plan.

Start with the configuration. Then plan the order, the charging setup and the service parts that keep your fleet supported.

  1. 01

    Define your specification

    Confirm seating, body options and requirements for your market.

  2. 02

    Plan the order

    Share your quantity and destination for loading and pricing.

  3. 03

    Match the parts

    Build a service package around your model and revision.

Build my fleet quote ↗

Questions about the Transit TR14

How many seats does the model Transit TR14 have?

The Transit TR14 seats 14.

How fast does the model Transit TR14 go?

Up to 30 km/h (19 mph) on the published sheet, and the top speed can be limited in the controller for your site.

What is the range of the model Transit TR14?

The published base range is 90 km (56 miles) per charge, with an 8-hour charge time. Real range depends on load, gradients and driving style.

How much does the model Transit TR14 cost?

The Transit TR14 is sold wholesale by quotation. The price depends on the configuration, battery, options, quantity and destination; send your order details for a written quote.
