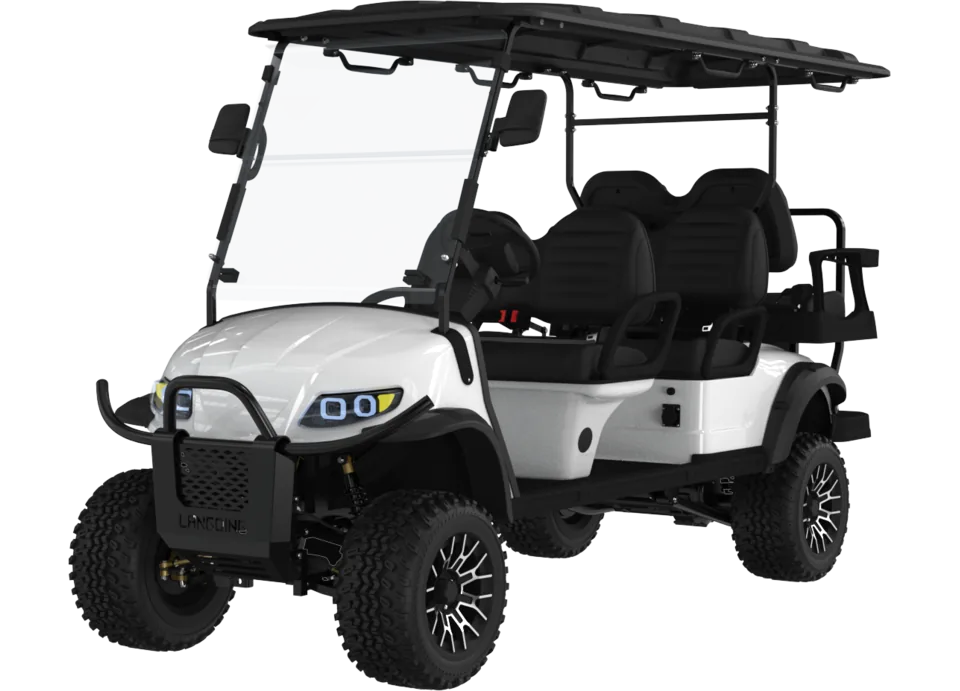

Lifted Electric Golf Cart
Trailblazer T40
Raised ride height and all-terrain tyres. Start with your site conditions and choose a seating configuration.
- Seats
- 4
- Range
- 80 km 50 mi
- Top speed
- ≤ 40 km/h ≤ 25 mph · adjustable
- Motor
- 5 kW 48 V AC
- Seats
- 6
- Range
- 70 km 43 mi
- Top speed
- ≤ 40 km/h ≤ 25 mph · adjustable
- Motor
- 5 kW 48 V AC
Choose your configuration
Ask for a loading plan, production timing and service parts in the written quote.
Go beyond the paved route.
Trailblazer T40 at a glance
The Trailblazer T40 is a 4 to 6 seater lifted electric golf cart from the Trailblazer series, with raised ride height and all-terrain tyres for gravel paths, estates and hilly resorts.
Its published 2025 sheet lists a 80 km (50 mile) base range, a top speed of up to 40 km/h (25 mph), a 48 V system with a 5 kW motor and an 8-hour charge time. Power comes from deep-cycle, maintenance-free lead-acid batteries.
The lifted platform. Taller ride height, all-terrain tyres and a 40 km/h drivetrain for properties with gravel, grades and unpaved service roads.
Dealers and fleet buyers order it wholesale by container, with configuration, colour and branding confirmed in the written quotation.
- Overall3210 x 1350 x 2060 mm126.4 x 53.1 x 81.1 in
- Overall3740 x 1350 x 2060 mm147.2 x 53.1 x 81.1 in
- SeriesTrailblazerLifted & Off-Road
- Seating4–6configurable
2025 model year
Full specification
Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.
4 seats
| Overall L x W x H | 3210 x 1350 x 2060 mm126.4 x 53.1 x 81.1 in |
|---|---|
| Wheelbase | 2420 mm95.3 in |
| Seating capacity | 4 |
| Kerb weight | ≤ 704 kg (with batteries)≤ 1552 lb (with batteries) |
| Gross vehicle weight | 1044 kg2302 lb |
| Track, front / rear | 1020 / 1070 mm40.2 / 42.1 in |
| Ground clearance | 180 mm7.1 in |
| Turning radius, outer | ≤ 5 m≤ 16.4 ft |
| Range | 80 km50 mi |
| Top speed | ≤ 40 km/h, adjustable≤ 25 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | Double-wishbone independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Trailing-arm rear suspension with the motor coupled directly to a solid rear axle |
| Brakes | Dual-circuit hydraulic four-wheel disc brakes with electronic park brake |
| Steering | Dual-pinion rack-and-pinion steering |
| Tyres and wheels | 23 x 10.5-12 all-terrain tyres, 4-ply rated, P334 tread on 529 alloy wheels |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | High-strength injection-moulded ABS, black |
| Glazing | Fold-down acrylic windscreen, DOT marked |
| Floor | Diamond-pattern rubber floor |
| Seating | High-density polyurethane foam cushions in microfibre leather |
| Steering wheel | Injection-moulded steering wheel with scorecard holder (R40) |
| Dash and instrumentation | Injection-moulded dash with key switch, forward/reverse selector, hazard and lighting switches, and a round TFT display showing voltage, state of charge, speed and odometer |
| Lighting and signalling | Combination headlamps with high/low beam, DRL and flash-to-pass, indicators, combination tail lamps, horn and reversing buzzer |
| Bumpers | Steel bumper |
| Fitted accessories |
|
6 seats
| Overall L x W x H | 3740 x 1350 x 2060 mm147.2 x 53.1 x 81.1 in |
|---|---|
| Wheelbase | 2420 mm95.3 in |
| Seating capacity | 6 |
| Kerb weight | ≤ 770 kg (with batteries)≤ 1698 lb (with batteries) |
| Gross vehicle weight | 1280 kg2822 lb |
| Track, front / rear | 1020 / 1070 mm40.2 / 42.1 in |
| Ground clearance | 180 mm7.1 in |
| Turning radius, outer | ≤ 5 m≤ 16.4 ft |
| Range | 70 km43 mi |
| Top speed | ≤ 40 km/h, adjustable≤ 25 mph, adjustable |
| Max gradient, laden | ≤ 15% |
| System voltage | 48 V |
| Motor | 48 V 5 kW three-phase AC induction motor, copper-wound, high torque and low noise |
| Controller | 48 V 350 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping |
| Battery | Six 8 V 150 Ah deep-cycle maintenance-free lead-acid batteries |
| Charger | On-board intelligent high-frequency charger, 220 V AC input, 48 V DC / 25 A output |
| Charge time | 8 hours |
| Chassis | High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat |
| Front axle and suspension | Double-wishbone independent front suspension, coil springs with hydraulic dampers |
| Rear axle and suspension | Trailing-arm rear suspension with the motor coupled directly to a solid rear axle |
| Brakes | Dual-circuit hydraulic four-wheel disc brakes with electronic park brake |
| Steering | Dual-pinion rack-and-pinion steering |
| Tyres and wheels | 23 x 10.5-12 all-terrain tyres, 4-ply rated, P334 tread on 529 alloy wheels |
| Body | High-strength composite body with an injection-moulded PP front cowl for impact resistance |
| Canopy | High-strength injection-moulded ABS, black |
| Glazing | Fold-down acrylic windscreen, DOT marked |
| Floor | Diamond-pattern rubber floor |
| Seating | High-density polyurethane foam cushions in microfibre leather |
| Steering wheel | Injection-moulded steering wheel with scorecard holder (R40) |
| Dash and instrumentation | Injection-moulded dash with key switch, forward/reverse selector, hazard and lighting switches, and a round TFT display showing voltage, state of charge, speed and odometer |
| Lighting and signalling | Combination headlamps with high/low beam, DRL and flash-to-pass, indicators, combination tail lamps, horn and reversing buzzer |
| Bumpers | Steel bumper |
| Fitted accessories |
|

Plan beyond delivery
A vehicle is part of a bigger plan.
Start with the configuration. Then plan the order, the charging setup and the service parts that keep your fleet supported.
- 01
Define your specification
Confirm seating, body options and requirements for your market.
- 02
Plan the order
Share your quantity and destination for loading and pricing.
- 03
Match the parts
Build a service package around your model and revision.
Questions about the Trailblazer T40
How many seats does the model Trailblazer T40 have?
The Trailblazer T40 is published in 4 and 6 seat configurations; choose the layout in your quotation.
How fast does the model Trailblazer T40 go?
Up to 40 km/h (25 mph) on the published sheet, and the top speed can be limited in the controller for your site.
What is the range of the model Trailblazer T40?
The published base range is 80 km (50 miles) per charge, with an 8-hour charge time. Real range depends on load, gradients and driving style.
How much does the model Trailblazer T40 cost?
The Trailblazer T40 is sold wholesale by quotation. The price depends on the configuration, battery, options, quantity and destination; send your order details for a written quote.
