Electric Utility Vehicle

Hauler HL32

Electric utility transport for grounds, maintenance and site logistics. Choose the body and seating that fit the job.

Explore customization services

Seats
2
Range
90 km 56 mi
Top speed
≤ 30 km/h ≤ 19 mph · adjustable
Motor
7.5 kW 72 V AC

Choose your configuration

Flat deck, open cab

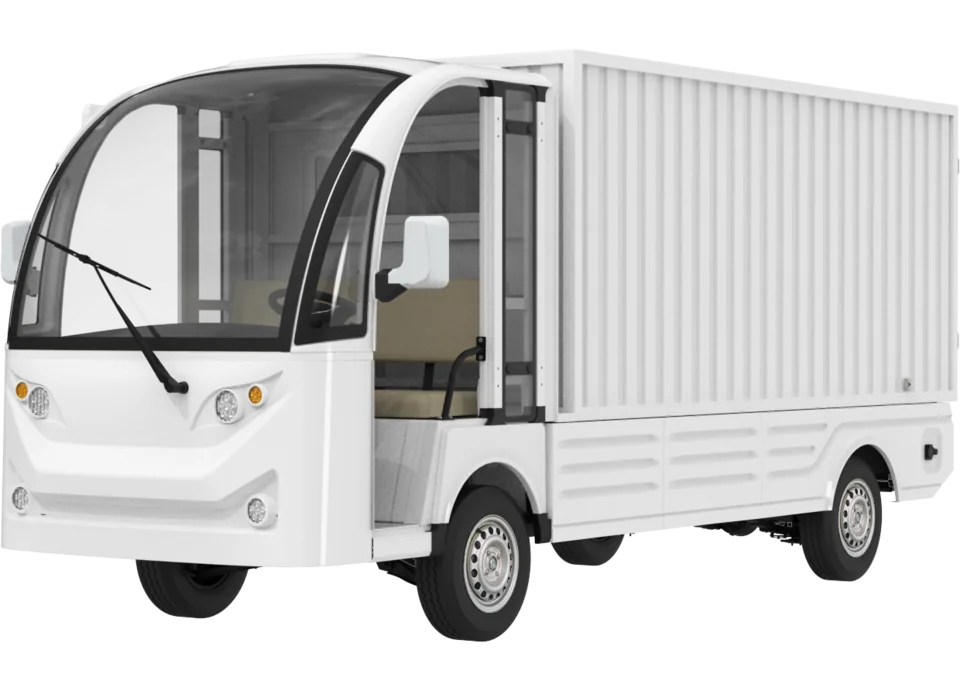

Cargo box, open cab

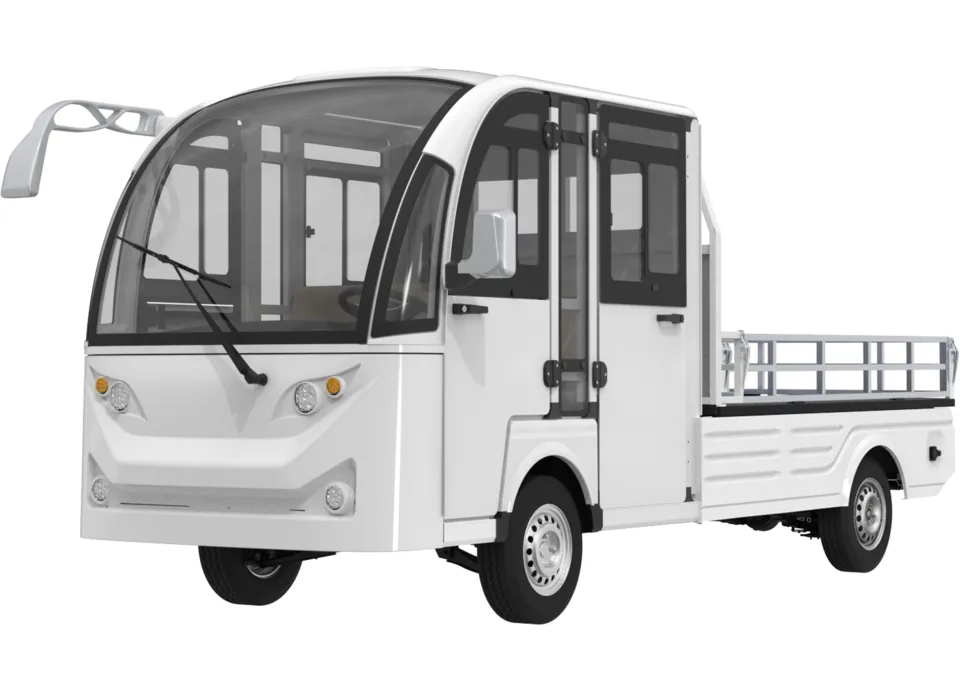

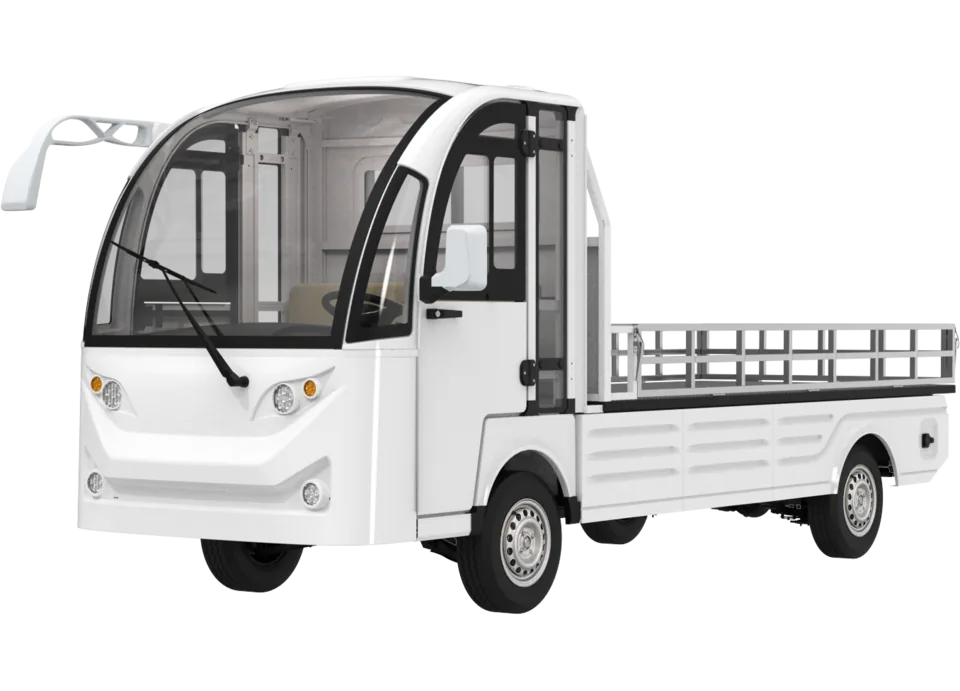

Flat deck, closed cab

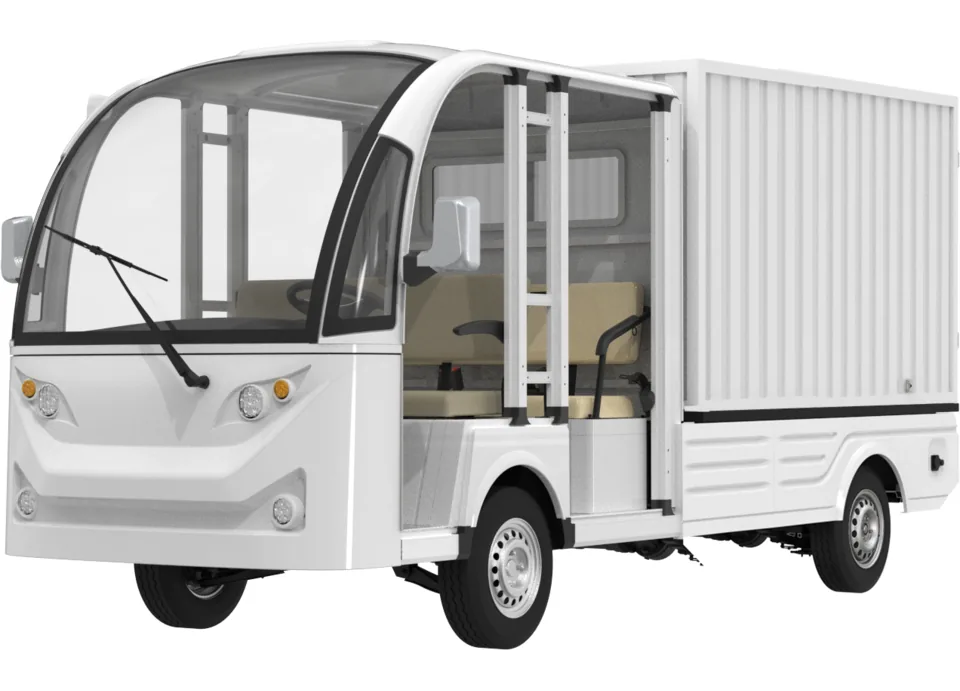

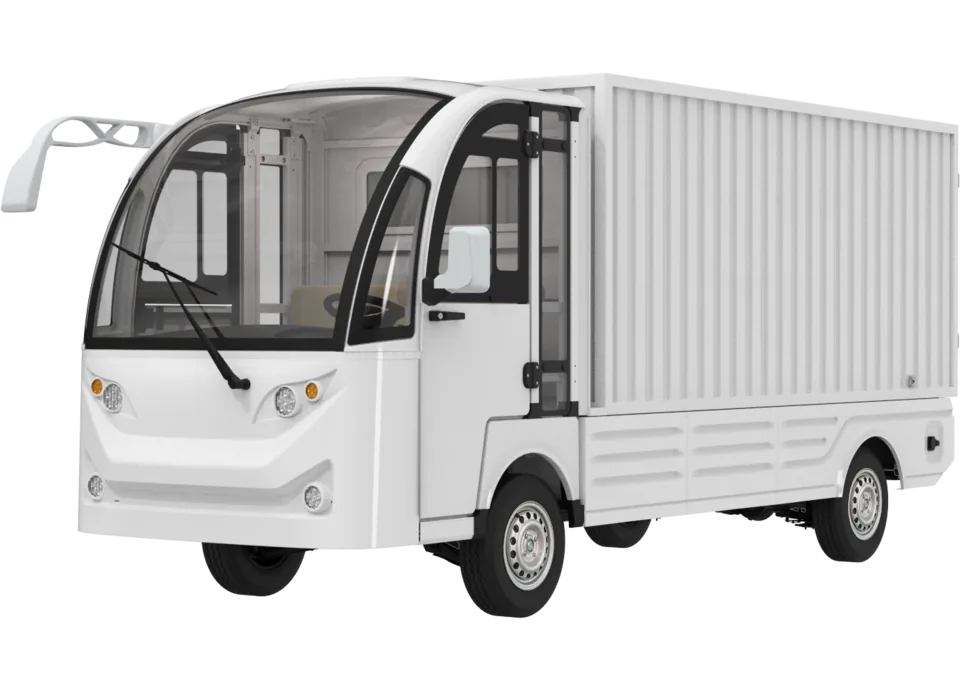

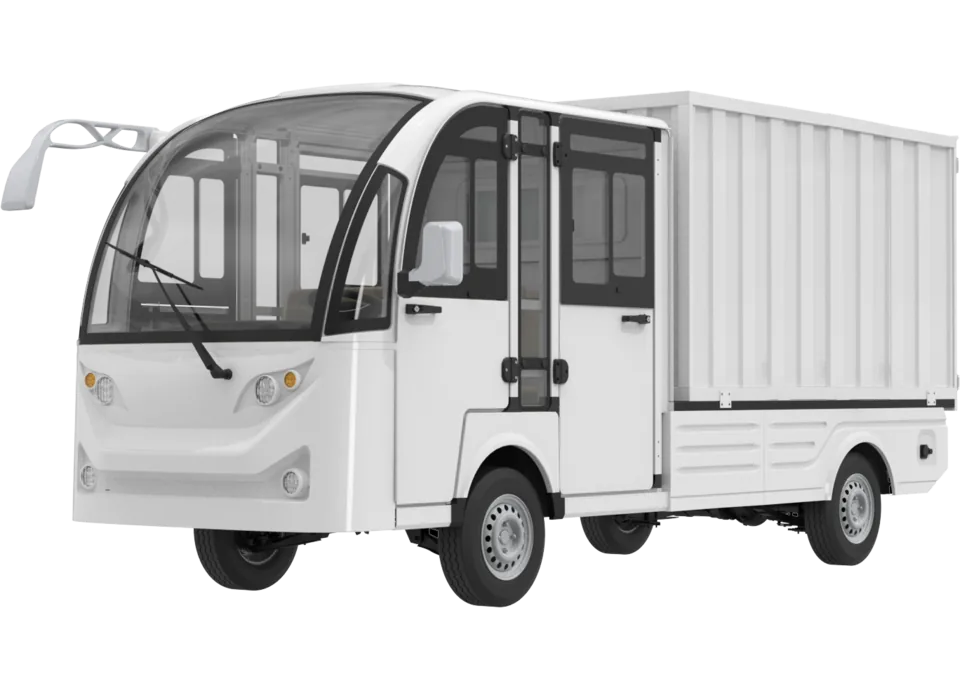

Cargo box, closed cab

Ask for a loading plan, production timing and service parts in the written quote.

Hauler HL32, Flat deck, open cab · 2 seats

Built around the working day.

Hauler HL32 at a glance

The Hauler HL32 is a 2 or 5 seat electric utility vehicle from the Hauler range for grounds care, maintenance and site logistics.

Its published 2025 sheet lists a 90 km (56 mile) base range, a top speed of up to 30 km/h (19 mph), a 72 V system with a 7.5 kW motor and an 8-hour charge time. Power comes from deep-cycle, maintenance-free lead-acid batteries.

The work truck. Two wheelbases, each available as a single or double cab, with an open half-top or a closed cab, and either a flat deck or a drop-side cargo box.

Dealers and fleet buyers order it wholesale by container, with configuration, colour and branding confirmed in the written quotation.

  • Overall4920 x 1500 x 2095 mm193.7 x 59.1 x 82.5 in
  • SeriesHaulerUtility & Cargo
  • Seating2–5configurable

2025 model year

Full specification

Reproduced in full from the manufacturer's configuration sheet, revision 20250901. Imperial values are converted, not separately measured. First-party specification; not independent validation.

Flat deck, open cab · 2 seats

Hauler HL32 — Flat deck, open cab · 2 seats specification
Overall L x W x H 4920 x 1500 x 2095 mm193.7 x 59.1 x 82.5 in
Wheelbase 2770 mm109.1 in
Seating capacity 2
Kerb weight 1300 kg2866 lb
Gross vehicle weight 2445 kg5390 lb
Track, front / rear 1300 / 1300 mm51.2 / 51.2 in
Ground clearance 140 mm5.5 in
Turning radius, outer ≤ 6.5 m≤ 21.3 ft
Cargo deck 3220 x 1500 x 300 mm (stainless steel stake sides)126.8 x 59.1 x 11.8 in (stainless steel stake sides)
Range 90 km56 mi
Top speed ≤ 30 km/h, adjustable≤ 19 mph, adjustable
Max gradient, laden ≤ 15%
System voltage 72 V
Motor 72 V 7.5 kW three-phase AC induction motor, copper-wound, high torque and low noise
Controller 72 V 450 A three-phase AC controller with stepless CMOS drive, regenerative electronic braking, anti-rollback, automatic downhill speed limiting and programmable mapping
Battery Twelve 6 V 170 Ah deep-cycle maintenance-free lead-acid batteries
Charger On-board intelligent high-frequency charger, 220 V AC input, 72 V DC / 25 A output
Charge time 8 hours
Chassis High-strength steel ladder-frame chassis, electrophoretic primer plus powder coat
Front axle and suspension MacPherson strut independent front suspension, coil springs with hydraulic dampers
Rear axle and suspension Solid rear axle on leaf springs with hydraulic dampers
Brakes Dual-circuit hydraulic brakes — ventilated front discs, rear drums — with hand-brake parking and vacuum assistance
Steering Dual-pinion rack-and-pinion steering with speed-sensitive electric power assistance
Tyres and wheels 165/70R13C tubeless radial tyres on steel rims
Body High-strength composite body with an injection-moulded PP front cowl for impact resistance
Canopy Reinforced composite panel on an aluminium frame — light, UV-stable and fade-resistant
Roof pillars Custom aluminium pillars — high strength, corrosion-free
Glazing Automotive laminated safety glass
Floor Chequer-plate aluminium floor — corrosion-free and hard-wearing
Seating Automotive-grade PU seating, ergonomically profiled
Dash and instrumentation Injection-moulded dash with combination switchgear, key switch, emergency cut-off and a multifunction LCD showing voltage, state of charge, speed and odometer with media playback — USB/Type-C, storage cubby and cup holders
Lighting and signalling LED high/low beam, indicators, combination LED tail lamps, horn and reversing buzzer
Additional standard equipment
  • Reversing camera
  • Multimedia display with speakers
  • Two-point seat belts
  • Fire extinguisher
  • Brake booster
  • Power steering
  • USB socket
  • Foam seat cushions fitted as standard
  • All metalwork electrophoretically primed and powder coated
  • Stainless steel stake sides
Electric vehicle chassis on an assembly line

Plan beyond delivery

A vehicle is part of a bigger plan.

Start with the configuration. Then plan the order, the charging setup and the service parts that keep your fleet supported.

  1. 01

    Define your specification

    Confirm seating, body options and requirements for your market.

  2. 02

    Plan the order

    Share your quantity and destination for loading and pricing.

  3. 03

    Match the parts

    Build a service package around your model and revision.

Build my fleet quote ↗

Questions about the Hauler HL32

How many seats does the model Hauler HL32 have?

The Hauler HL32 is published in 2 and 5 seat configurations; choose the layout in your quotation.

How fast does the model Hauler HL32 go?

Up to 30 km/h (19 mph) on the published sheet, and the top speed can be limited in the controller for your site.

What is the range of the model Hauler HL32?

The published base range is 90 km (56 miles) per charge, with an 8-hour charge time. Real range depends on load, gradients and driving style.

How much does the model Hauler HL32 cost?

The Hauler HL32 is sold wholesale by quotation. The price depends on the configuration, battery, options, quantity and destination; send your order details for a written quote.

Also consider

Nearby in the range

These models share this vehicle category and are ordered by seating proximity. Compare this model's 2 base seats and 90 km published base range with each alternative.

Get a quote

Pricing for the Hauler HL32

Tell us the quantity, seating configuration and destination port. Request a loading plan and available freight costs in the written quote.

  • Request a loading plan for your model mix
  • Ask for available FOB pricing and freight costs
  • Confirm lead time after agreeing the specification
  • Discuss service parts for each selected configuration
